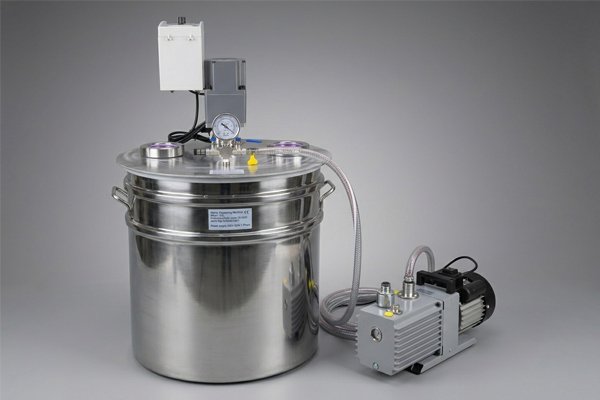

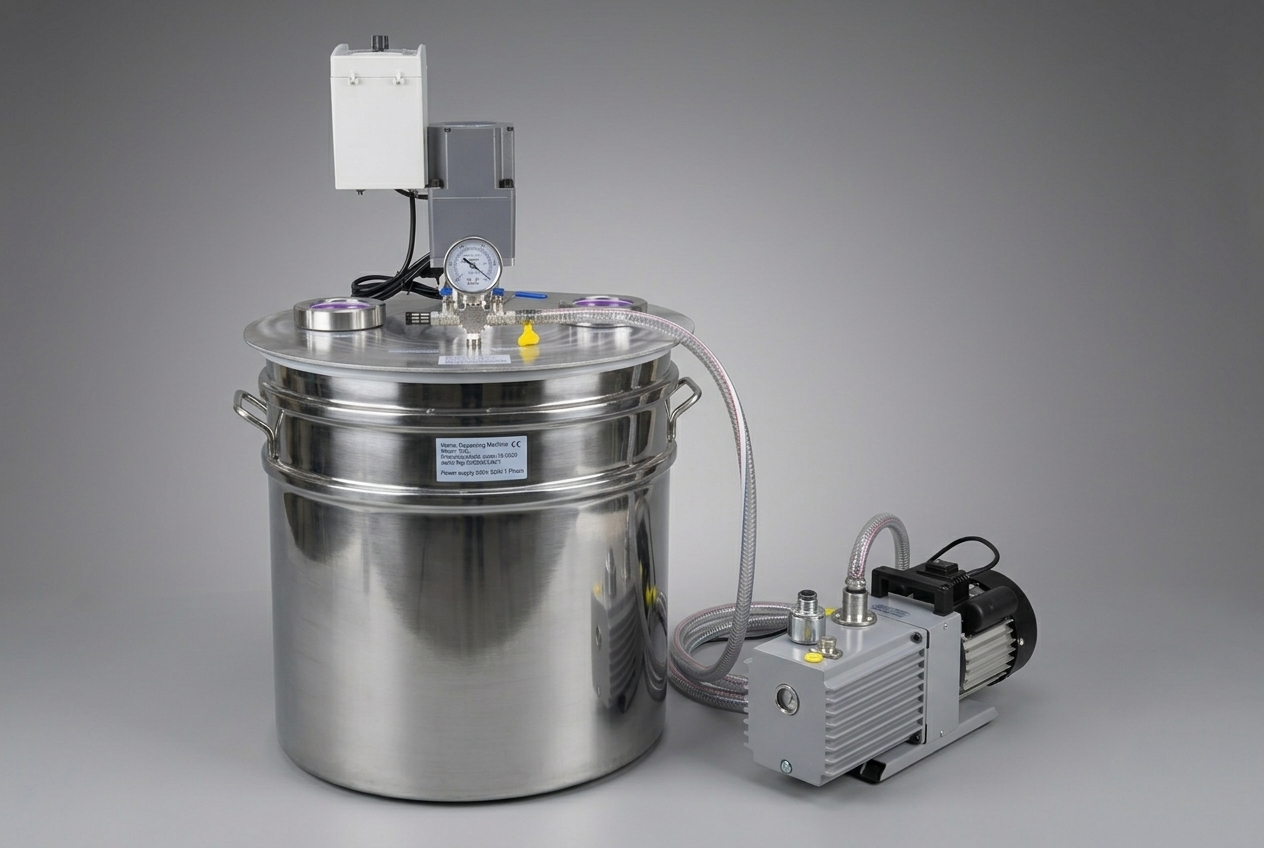

Stainless Steel Vacuum Mixer & Degassing Machine

In modern manufacturing, electronics encapsulation, and scientific research, the presence of micro-bubbles can lead to catastrophic structural failure, insulation breakdown, or surface blemishes. This Stainless Steel Vacuum Mixer is specifically engineered to solve the challenging de-airing problems of highly viscous, bubbly compounds.

Constructed from premium, thick-walled stainless steel, the vessel offers outstanding structural integrity and will not deform under full industrial vacuum levels. The core advantage of this system is its simultaneous mixing and degassing capability. While a standard vacuum chamber only pulls air from the surface (which can take hours for thick materials), the integrated dynamic impeller continuously brings trapped air from the bottom to the top. Under a deep negative pressure of -0.1 MPa, these bubbles instantly burst, resulting in a perfectly blended, uniform, and completely bubble-free mixture in a fraction of the time.

The system features an extremely user-friendly interface with digital speed readout, a highly responsive control panel, and a precision mechanical pressure gauge. Its compact, integrated design makes it an ideal fit for both automated factory assembly lines and tight laboratory environments. Built with non-wear, easy-to-clean components, it is your ultimate choice for improving product yield and manufacturing quality.

（Note: Chamber dimensions, gallon capacities, motor ratings, and connection fittings are completely customizable to align with your specific workflow requirements. Example, the volume of vacuum chamber can be 1000L）

• Every component is built to industrial standards, ensuring long-lasting durability and the flexibility to swap components as your project demands.

  1. High-Torque BLDC Gear Motor

  • Features: Powered by a top-mounted 750W high-performance Brushless DC Gear Motor featuring a 1:5 reduction ratio.

  • Benefits: Delivers immense torque, easily cutting through high-resistance, dense polymers or high-viscosity silicones to guarantee uniform mixing without stalling.

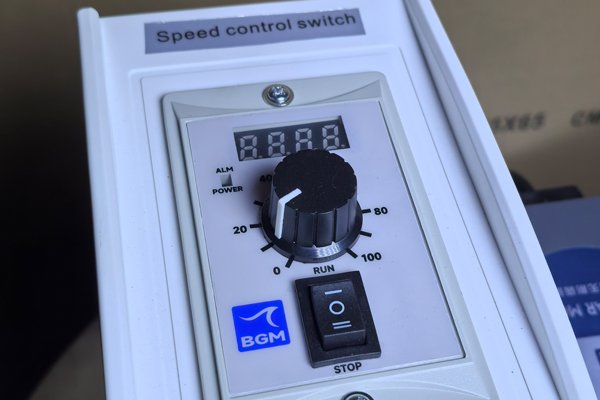

  2. Intelligent Speed Control Switch

  • Features: Includes a dedicated, external digital control unit with a smooth adjusting knob (30-600 r/min) and an explicit I/O power toggle.

  • Benefits: Offers precise and intuitive control, enabling operators to fine-tune the RPM based on fluid dynamics, preventing material splashing while optimizing degassing cycles.

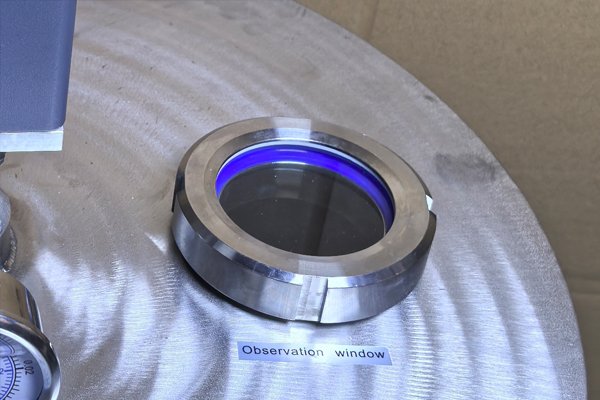

  3. Dual LED Observation Windows

  • Features: Symmetrically placed dual observation ports made of high-strength tempered glass, sealed with airtight rings and enhanced by internal blue LED illumination.

  • Benefits: Eliminates guesswork by allowing you to safely monitor the material as it expands, boils, and flattens out under vacuum without breaking the seal.

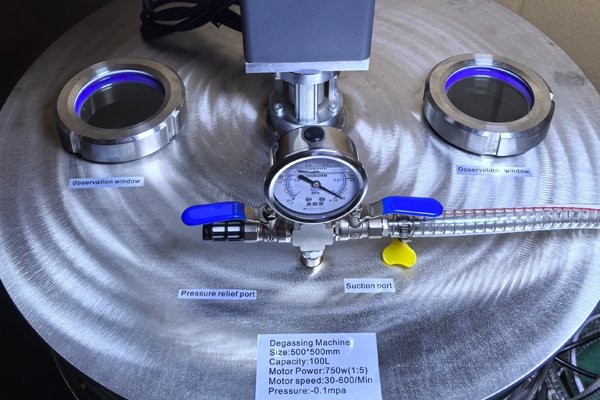

  4. Heavy-Duty Pressure & Valve Control Manifold

  • Features: Fully integrated layout featuring a clear mechanical vacuum gauge, ergonomic blue-handled ball valves for air isolation, a dedicated Pressure Relief Port, and a quick-connect Suction Port.

  • Benefits: Provides streamlined airflow regulation and seamless transitions between pulling vacuum and venting, ensuring maximum operational safety.

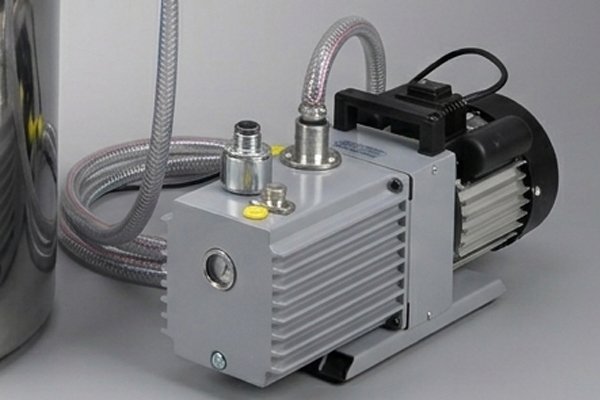

  5. Industrial Dual-Stage Rotary Vane Vacuum Pump

  • Features: Bundled with a heavy-duty vacuum pump connected to the main chamber via a reinforced, steel-wire-braided flexible vacuum hose.

  • Benefits: Ensures rapid pull-down speeds, consistent high-vacuum maintenance, and stable, continuous operational performance.

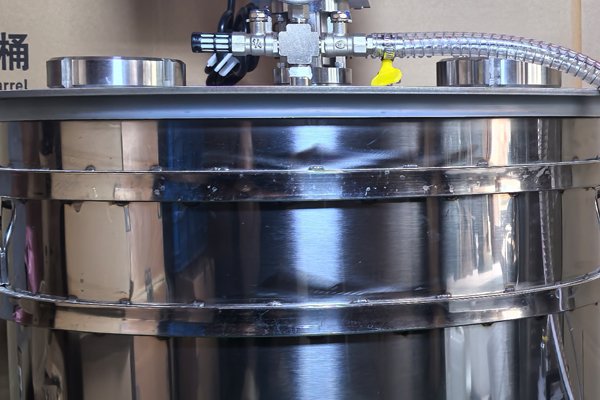

  6. Reinforced Stainless Steel Vessel & Quick Clamp Ring

  • Features: Built with a certified nameplate, structural lifting handles on both sides, and precision welding.

  • Benefits: The specialized compound gasket is chemical-resistant and anti-aging, ensuring the chamber maintains a perfect seal under -0.1 MPa without any microscopic air leaks over time.

  7. Export-Grade Fumigation-Free Wooden Crate Packaging

  • Features: Shipped in a completely enclosed, reinforced wooden box with heavy-duty metal edge trim, a forklift-ready base, and clear "Fragile / Handle With Care" safety labels.

  • Benefits: Guarantees absolute safety and peace of mind against impacts, moisture, and mechanical handling accidents during long-distance international ocean, land, or air freight.
