In critical analytical workflows, the structural integrity and material neutrality of the testing enclosure dictate data fidelity. Our high-sealing glass test cabinet delivers a professional-tier solution that bridges the gap between mechanical durability and optical transparency.

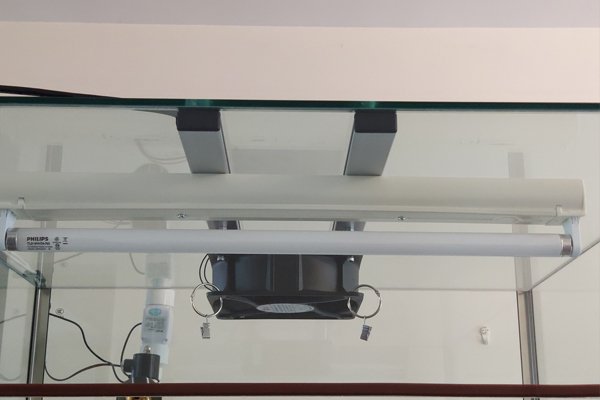

Every unit features robust reinforced glass walls coupled with heavy-duty rotary compression handles, ensuring a completely leak-proof environment under active fan dispersion. Designed with modularity in mind, the system easily adapts to your precise testing layouts through customizable sampling ports, sealed power feedthroughs, and auxiliary germicidal UV installations. Whether deployed for testing volatile organic compounds (VOCs), sensitive particulate decay curves, or specialized device analytics, this hermetically sealed glass chamber provides global laboratories with repeatable, audit-ready performance data.
| Internal Volume | 1.25m x 0.8m x 1.0m = 1.0 Cubic Meter (m³) |
| Chamber Material | Premium Industrial-Grade Tempered Glass |
| Wall Thickness | 8mm/12 mm Reinforced Thickness |
| Sealing Gasket | Integral Silicone Rubber Material Sealing |
| Chamber Door Setup | Top-mounted sealed door with Multi-Angle Stainless Steel Support Bracket |
| Chassis Framework | Heavy-Duty Movable Aluminum Alloy Frame Chassis with Universal Caster Wheels |
| Internal Mixing Fan | Right-side mounted uniform dispersion fan |

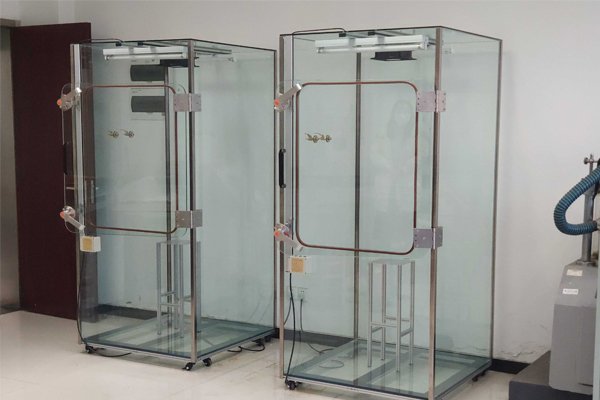

| Internal Volume | 0.9m x 0.9m x 1.85m = 1.5 Cubic Meter (m³) |
| Chamber Material | Premium Industrial-Grade Tempered Glass |
| Wall Thickness | 8mm/12 mm Reinforced Thickness |
| Sealing Gasket | Integral Silicone Rubber Material Sealing |
| Chamber Door Setup | Front-mounted sealed door with Heavy-Duty Rotary Compression Clamping Handles |
| Chassis Framework | Heavy-Duty Movable Aluminum Alloy Frame Chassis with Universal Caster Wheels |
| Internal Mixing Fan | Top-mounted uniform dispersion fan |

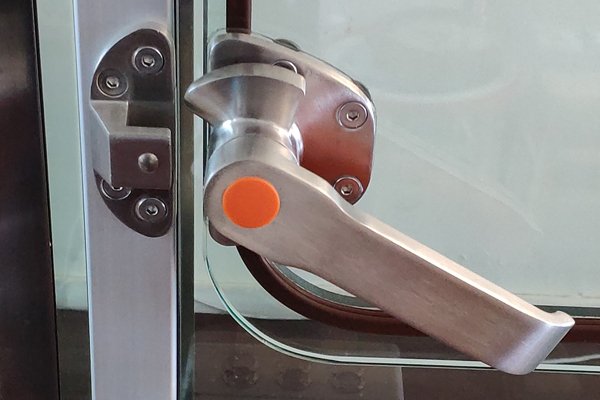

Equipped with heavy-duty rotary chamber door compression handles. The mechanical rotating action delivers a continuous, symmetric clamping force against the integral silicone gaskets, maintaining a true high airtightness glass chamber seal capable of isolating critical analytical payloads.

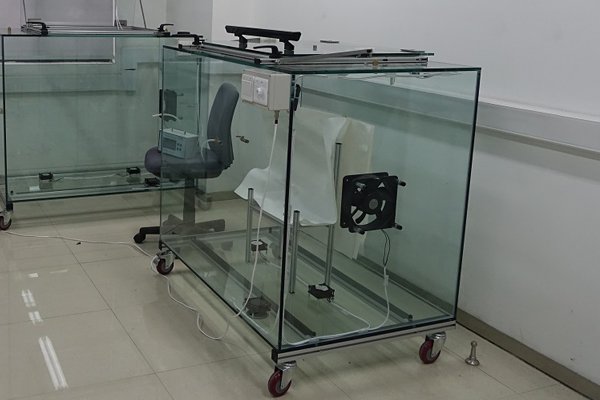

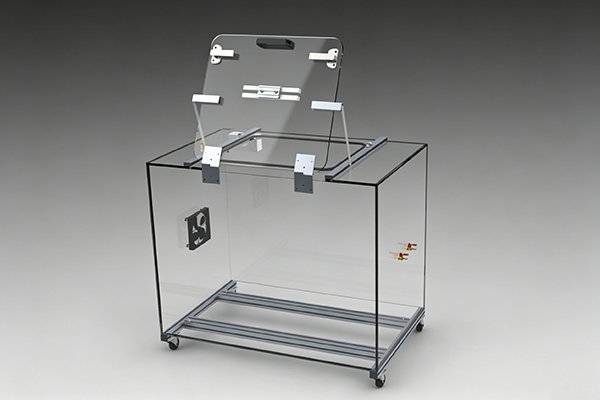

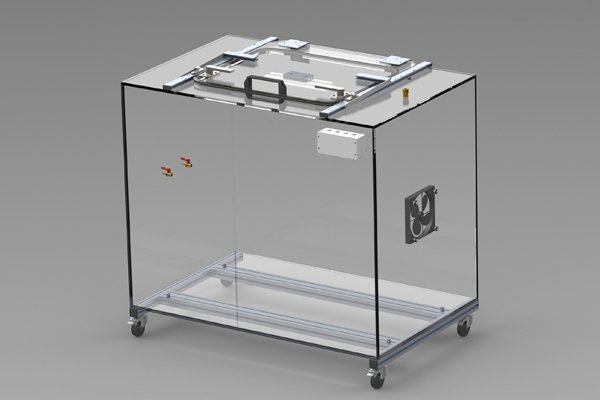

The 1.0m³ top-opening system features an industrial stainless steel multi-angle door bracket. This robust arm counterbalances the heavy 12mm glass door, allowing operators to securely fix the top door open at various angles for safe loading and interior adjustments.

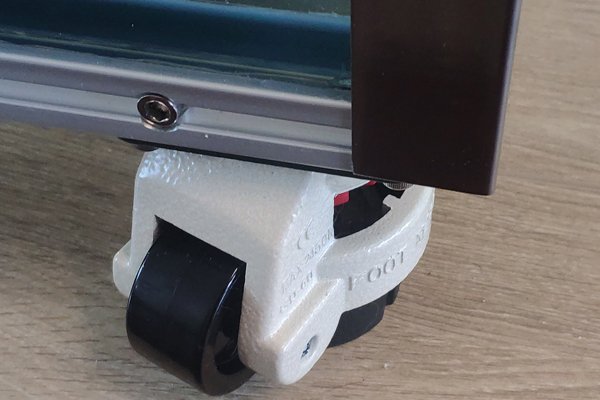

The entire lab glass sealed cabinet sits on a low-vibration, high-stability aluminum alloy frame chassis. Fitted with heavy-duty universal caster wheels, the system combines structural dead-weight operational stability with swift laboratory mobility.
Every custom all-glass environmental cabin structure can be altered during our engineering phase to fit your testing equipment or instrument layouts:
By removing traditional polymer or metal wall interference, this clear glass enclosed chamber for lab testing adapts seamlessly across multiple analytical sectors:
Acrylic cabins scratch easily and suffer from plasticizer outgassing, while metals can react with trace chemicals or trap fine particulates via electrostatics. A fully sealed glass box for device detection ensures that target gases or aerosols remain uncorrupted by wall reactions, yielding highly precise and reproducible data graphs.

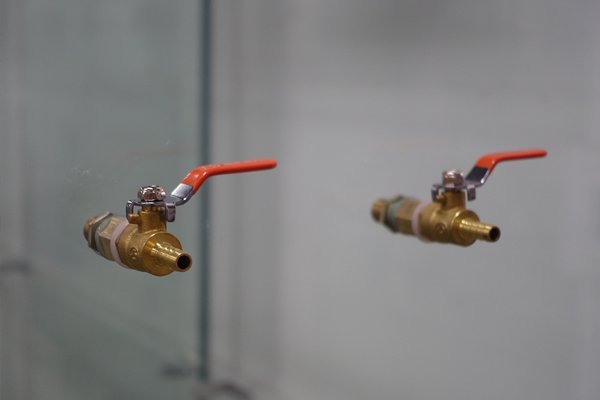

Yes. We specialize in custom configurations. Our manufacturing team can drill and integrate specialized suction lines, sensor arrays, or gas feed ports onto designated coordinates of the 12mm glass or aluminum frame structure based on your blueprinted layout.
The integral silicone rubber compound is selected for its high elasticity and resistance to aging. Compressed firmly by the rotating mechanical handle, it operates as a reliable hermetically sealed glass chamber gasket, avoiding bypass leaks during long-duration particle and chemical injection cycles.
Whether you require the standard 1.0 m³ top-opening setup, the 1.5 m³ vertical profile, or specialized port layouts, submit your mechanical criteria to our engineering desk.
