When scaling up your production, upgrading to a large vacuum chamber isn't just about buying a bigger box—it’s about structural engineering, vacuum integrity, and operational ergonomics. Large chambers experience tons of atmospheric pressure, meaning every weld, hinge, and reinforcement grid matters.
If you are evaluating high-capacity vacuum equipment for your facility, here is a practical engineering teardown of the critical features that determine a chamber's performance, safety, and longevity.
📐 1. Geometry & Volumetric Dimensions
While small chambers are typically cylindrical, large-scale industrial chambers often utilize a cubical or rectangular design.
Space Optimization: Rectangular geometry eliminates the wasted "curved" corners of a cylinder, allowing you to utilize 100% of the internal floor space for large trays, square molds, or dense component racks.
External Reinforcement: Because flat walls naturally bow inward under vacuum, a high-quality chamber must feature a heavy-duty outer grid framework (reinforcing ribs). This engineering layout prevents structural fatigue and wall deflection without consuming precious internal workspace.
🌀 2. Vacuum Depth & Sealing Integrity
A large volume requires exceptional sealing mechanics to achieve and maintain deep vacuum levels efficiently.
High-Vacuum Performance: Look for chambers rated for deep vacuum pull-downs, utilizing low-outgassing, high-density silicone or Viton perimeter gaskets.
Multi-Point Heavy-Duty Latches: To ensure the door compresses the gasket uniformly before the pump starts drawing air, heavy-duty perimeter wheel-locks or rugged toggle clamps are essential. They eliminate micro-gaps and prevent early-stage seal leakage.
👁️ 3. Reinforced Viewports (Observation Windows)
Monitoring what happens inside the chamber is crucial for process control.
Placement & Safety: A reliable large chamber should feature thick, tempered glass or heavy-duty polycarbonate viewports integrated directly into the front door or side walls.
Secure Bolting: Look for viewports secured by a robust, multi-bolt retaining bezel. This ensures the window can withstand years of cyclic pressure differentials without cracking or leaking.
⚙️ 4. Operational Ergonomics & Mobility
Industrial equipment shouldn't be a hassle to move or operate. When managing a large-format chamber, look for these built-in conveniences:
Dual-System Mobility: Heavy-duty, smooth-rolling casters are vital for positioning the chamber within your shop floor layout.
Integrated Leveling Feet: Once the chamber is in place, adjustable heavy-duty leveling pads should take the weight off the wheels, grounding the unit firmly and keeping the internal shelving perfectly level.
Accessible Manifolds: Vacuum inlet/outlet ports, bleed valves, and digital gauge connections should be grouped logically for easy hookup to your pump array.
🛠️ 5. Customization: Tailoring to Your Process
Every facility has unique requirements. A standardized off-the-shelf tank rarely fits perfectly into an advanced production line. A professional vacuum system should offer flexible customization options, including:

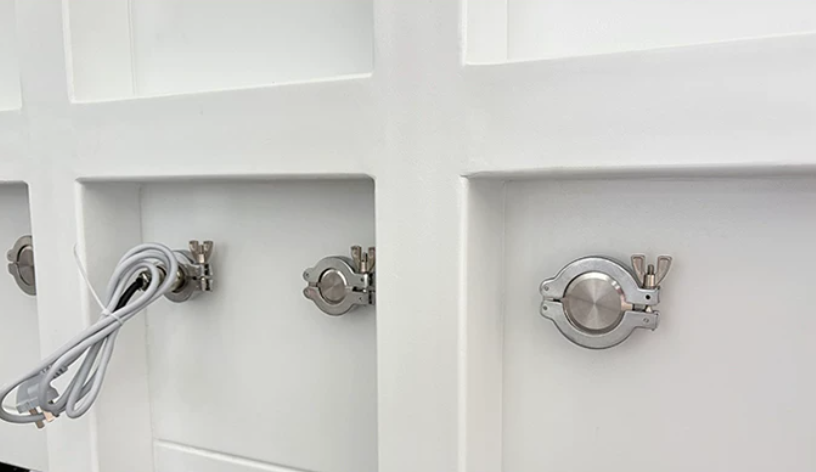

Custom Porting: Adding specific NPT, KF, or ISO flanges for electrical feedthroughs, internal heating elements, or liquid injection lines.
Internal Shelving: Adjustable or removable multi-tier rack systems to maximize batch throughput.
Material Alterations: Choosing specific stainless steel grades or specialized surface coatings depending on chemical exposure.
SS304 High Vacuum Chamber Large
💼 Beyond Degassing: Versatile Utility
While engineered for maximum structural performance, these high-spec chambers are highly versatile. Whether utilized for advanced resin degassing, electrical insulation impregnation (VPI), vacuum drying, or aerospace component testing, the core principles remains the same: reliable pressure containment and absolute process control.
Conclusion
A large vacuum chamber is a long-term investment in your production infrastructure. Prioritizing external rib reinforcement, secure door-locking mechanics, clear viewports, and customizable porting ensures your equipment keeps pace with your scaling demands.
