Negative Pressure Vacuum Box is a specialized device designed to create and maintain a controlled vacuum environment, widely used in industries such as pharmaceuticals, electronics, aerospace, and materials science. Its primary function is to remove air or gases from a sealed chamber, enabling processes like degassing, testing, or packaging under precise conditions.
Send Your Inquiry Now
Vacuum Chambers' Model for Choose
Model
Size（L*W*H）
Material
Vacuum degree
Thickness
Z400
400*400*400mm
SUS 304
-0.1MPA
3mm
Z600
600*600*600mm
SUS 304
-0.1MPA
3mm
Z800
800*800*800mm
SUS 304
-0.1MPA
3mm
Customized
Any size
SUS 304
-0.1MPA
To be design
Key Features and Technical Specifications
High-Efficiency Vacuum Generation: Utilizes advanced pumps to achieve rapid pressure reduction, with customizable pressure ranges.
Durable Construction: Made from corrosion-resistant materials like stainless steel or tempered glass, ensuring longevity in harsh environments.
Safety Mechanisms: Includes automatic shut-off valves and pressure sensors to prevent over-pressurization or leaks.
Modular Design: Compatible with auxiliary systems (e.g., gas injection, temperature control) for versatile applications.
Applications Across Industries
Electronics Manufacturing: Used for degassing epoxy resins in circuit board production to eliminate air bubbles.
Medical Packaging: Ensures sterile sealing of medical devices by removing oxygen, extending shelf life.
Aerospace Testing: Simulates low-pressure conditions to evaluate component durability.
Research Laboratories: Facilitates experiments in material science, such as thin-film deposition.

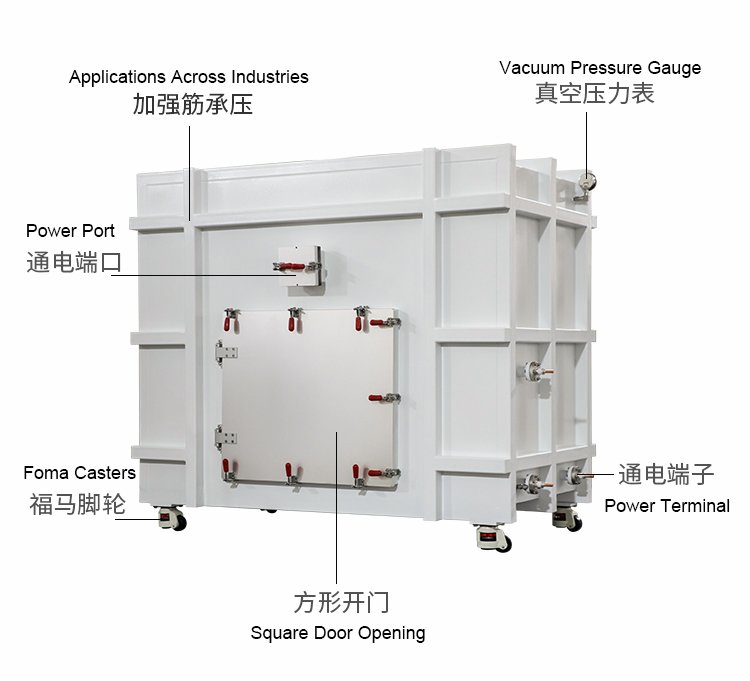

Vacuum Pressure Gauge
The Negative Pressure Vacuum Box is equipped with a vacuum pressure gauge to monitor the pressure value inside the box at any time.
Stainless Steel Buckle
The Negative Pressure Vacuum Box has a door opening on the side and a circle of buckle design, which provides better sealing and has a beautiful appearance.
Observation Window
An observation window is installed on the front door of the Negative Pressure Vacuum box, so the internal structure can be observed at any time.
Fuma Wheel
The box is relatively heavy and is equipped with Fomar wheels, which provides strong load-bearing capacity and is easy to move.
Terminals on the side of the box
Terminals are reserved on the side of the box to facilitate customers to power on.
Negative Pressure Box Door
The door design at the back of the box makes it easy to put things into the box.
