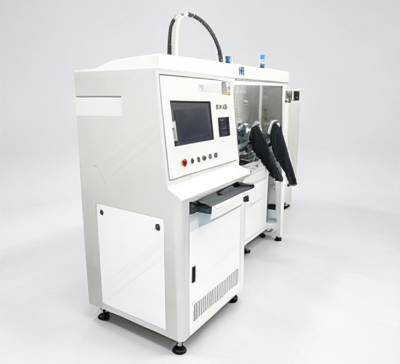

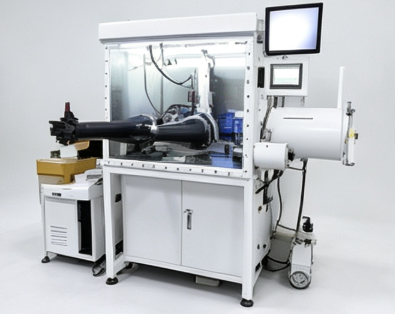

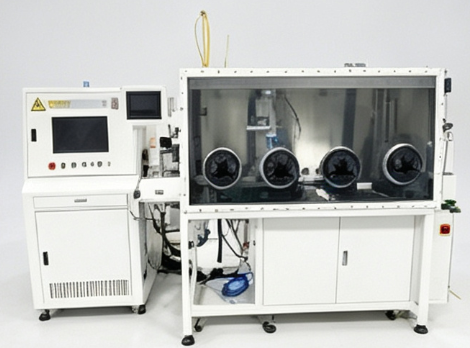

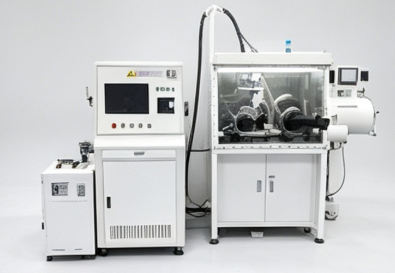

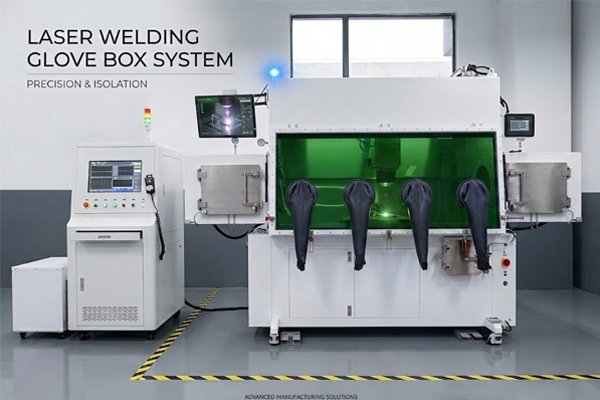

Laser Welding Glove Box

The Laser Welding Glove Box System is engineered to deliver ultimate, high-precision hermetic encapsulation within a strictly controlled, water-free, and oxygen-free inert gas environment.

By seamlessly integrating inert gas drying, vacuum baking, and final laser sealing within a fully isolated chamber, the system ensures that components remain entirely protected throughout the entire process. Compared to traditional epoxy resins, soldering, or mechanical seals, it provides an exceptionally durable, special-grade airtight seal.

Send Your Inquiry Now

Function of Laser Welding Glove Box

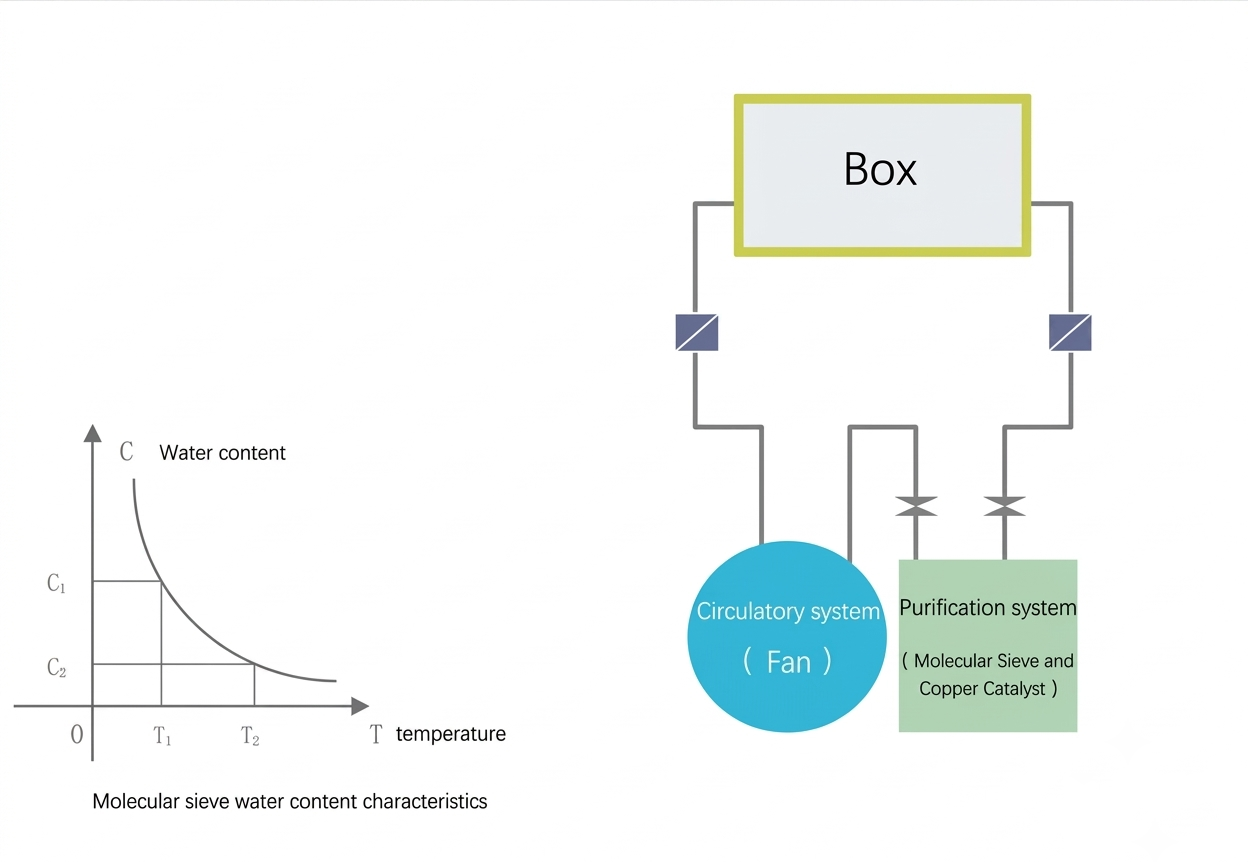

The working gas inside the glove box is circulated in a closed manner through pipelines, circulating fans, etc. between the box body and the purification column (water oxygen adsorber) under the control and monitoring of PLC. When the working gas circulates through the purification column, its water and oxygen content are adsorbed and then returned to the box. As the circulation time passes, the water and oxygen content in the working gas in the box gradually decreases, eventually reaching the target of less than 1ppm. After a certain period of circulation, the purification column will become saturated with adsorption and can be regenerated and reused.

When the temperature is low, T1, the molecular sieve water saturation C1 is high, which can absorb a large amount of water.
When the temperature is high, T2, the water saturation amount C1 of the molecular sieve is low, and the adsorbed water will be released first and evaporated. Regeneration of molecular sieves is achieved by heating and vacuuming.

Benefits of Laser Welding in Glovebox

This Glove Box Laser Welding System is specifically designed for the manufacture of medical devices requiring high precision and cleanliness. Leveraging superior gas environment control technology and micron-level precision welding processes, it perfectly overcomes industry challenges related to sealing, oxidation resistance, and biocompatibility in implantable medical devices. Its core advantages are as follows:

√ Clean welding with controlled water oxygen content
√ Precision welding suitable for implantable medical devices
√ Inert gas can be sealed inside the component cavity
√ Customizable operating space suitable for different products
√ Excellent welding oxidation suppression
√ Transition warehouse structure can be customized
√ Support double-sided glass windows
√ Customizable constant temperature environment inside the box

Applicable Environment

Suitable for use in cleanroom environments ranging from hundreds to millions, as well as in conventional workshops and laboratories.

Implantable Medical

Cleanroom-certified environment
Control of water oxygen content
HE Leak Rate < 1 × 10^-12 Pa · m³/s

Example: Heart Pacemaker

Military Manufacturing

Vacuum hermetic sealing
Long term vacuum maintenance
HE Leak Rate < 1 × 10^-12 Pa · m³/s

Example: Metal Shell

Microwave RF

Inert gas environment
Thermal impact control
HE Leak Rate < 1 × 10^-9 Pa · m³/s

Example: Filter

Sensor

Welding penetration control
Vacuum hermetic sealing
HE Leak Rate < 1 × 10^-9 Pa · m³/s

Example: Pressure Sensor

Category	Standard	Scope	Key Criteria
Material	ASTM F136	Medical Titanium (Ti6Al4V ELI)	Biocompatibility / O₂ ≤ 0.13%
	AMS 4911	Aerospace Titanium	Tensile Strength ≥ 895 MPa
	MIL-DTL-24176	Military Kovar Seals	CTE 4.8 ± 0.1 × 10^-6/°C
Welding Process	ISO 13919-1:2023	Laser Welding Quality Class	Grade B Welds (Aerospace)
	MIL-STD-2219	Military Laser Welding	Depth-to-Width Ratio ≥ 5:1
	NASM 1312	Aerospace Electronics	Thermal Cycling (-65°C ~ 150°C)
Hermeticity Test	MIL-STD-750E	Military Sealing	He Leak Rate < 1 × 10^-8 cc/s
	ASTM E499	Helium Leak Detection	Leak Rate < 5 × 10^-7 Pa·m³/s
	GJB 548B	Military Microelectronics	Fine + Gross Leak Dual Verification
Military Spec.	MIL-STD-883	Microelectronics Reliability	Particle Impact Noise Detection
Military Spec.	DEF STAN 02-813	Military Vacuum Sealing (UK)	He Leak Rate < 5 × 10^-9 mbar·l/s
