Custom-designed high-vacuum chamber for laboratory use
When it comes to advanced laboratory research—whether it's thin-film deposition, semiconductor testing, or precision vacuum degassing—off-the-shelf equipment rarely cuts it. Every experiment has its own unique set of variables: specific port configurations, precise spatial constraints, and strict vacuum level requirements.
That is exactly why standard boxes don’t work, and why engineering a custom-designed high-vacuum chamber is often the defining factor in a project's success.
Below, we take a closer look at our latest custom cube vacuum chamber engineered specifically for high-performance laboratory applications.
The Engineering Behind the Chamber
A high-vacuum (HV) environment demands flawless structural integrity and material purity. Let’s break down the design choices that make this specific chamber a reliable workhorse for research labs.

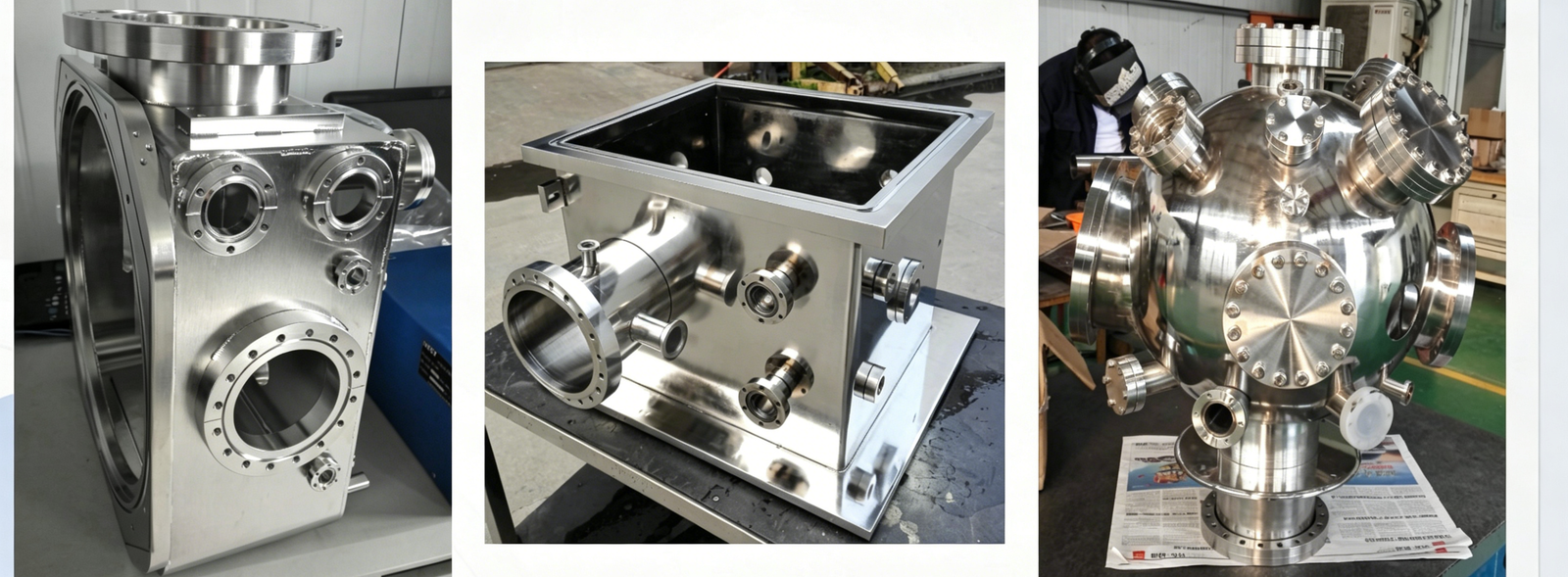

SS304 High Vacuum Chamber
Key Design Highlights for Demanding Lab Environments
Optimal Port Placement & Versatility: Look at the side and front profiles of the chamber. You will notice a strategic arrangement of ConFlat (CF) or ISO-KF flanges. These allow researchers to seamlessly integrate feedthroughs, viewports, vacuum gauges, and roughing/turbo pumps without cluttered spacing.
Maximum Accessibility: Unlike cylindrical chambers that can restrict front-facing access, this custom cube features a precision-machined, full-opening hinged door. If you are frequently swapping out substrates, adjusting sensors, or cleaning the interior after a degassing cycle, this design saves hours of tedious teardown time.
Low Outgassing & High Stability: Every weld is performed internally via TIG welding to eliminate trapped gas pockets (virtual leaks). The surface finish is meticulously treated—often electropolished—to minimize the internal surface area, ensuring faster pump-down times to reach your target high-vacuum pressures.
Why Customization Matters for Vacuum Degassing & Research
Why should you opt for a tailored chamber instead of a mass-produced model?
No Compromise on Your Setup: You shouldn't have to adapt your lasers, sensors, or fluid lines to the chamber. The chamber should be built around your experiment.
Eliminating "Virtual Leaks": Mass-produced chambers often overlook the micro-crevices that plague high-vacuum setups. Custom engineering ensures every single joint is Helium leak-tested to strict standards.
Future-Proofing: Need extra blank ports for future upgrades? Custom design allows you to add reserve ports now so you don't have to buy a completely new system two years down the road.
Engineer's Note: Whether you are dealing with high-viscosity resin degassing, space simulation, or material science research, the geometry of your vacuum chamber dictates your pumping efficiency. A well-designed custom chamber reduces turbulence and optimizes gas flow paths directly to your vacuum pumps.
Let’s Build Your Next Vacuum Solution
At vacuumdegassing.com, we don't just build chambers; we solve vacuum engineering challenges. If you are struggling with a complex layout, strict space limitations, or demanding high-vacuum specifications, our team is ready to turn your CAD concepts into reality.
Ready to discuss your lab’s specific vacuum requirements?[Contact our engineering team today] to get a custom quote and design consultation. Let's build something that takes your research to the next level.
