Cheap Portable Glove Box

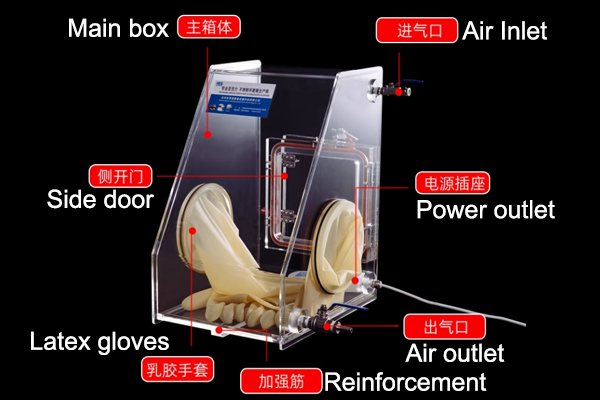

This is a very simple and cheap portable acrylic glove box, equipped with a main box, air inlet, side door, power socket, latex gloves, reinforcement ribs, air outlet, power socket. All parts on the box can be customized or replaced according to customer requirements.

Send Your Inquiry Now

A Type Acrylic Glove Box

A Type	Main box size	Box function	Box thickness	Side door size	Flange diameter	Transition chamber
GBT1A	W300D400H500	Cannot be vacuumed, can be filled with inert gas, vacuum degree +1000PA	6mm	260X260	165mm	No
GBT2A	W700D450H550	Cannot be vacuumed, can be filled with inert gas, vacuum degree +1000PA	6mm	300X350	165mm	No
GBT3A	W800D550H600	Cannot be vacuumed, can be filled with inert gas, vacuum degree +1000PA	6mm	300X400	165mm	No
GBT4A	W900D500H500	Cannot be vacuumed, can be filled with inert gas, vacuum degree +1000PA	6mm	300X300	165mm	No
GBT5A	W900D600H700	Cannot be vacuumed, can be filled with inert gas, vacuum degree +1000PA	10mm	400X400	200mm	No
GBT6A	W1000D750H700	Cannot be vacuumed, can be filled with inert gas, vacuum degree +1000PA	10mm	400X400	200mm	No
GBT8A	W1200D800H700	Cannot be vacuumed, can be filled with inert gas, vacuum degree +1000PA	10mm	400X400	200mm	No

A Type Glove Boxes

A series acrylic glove box is a relatively simple glove box without transition chamber.

GBT1A Door 260*260,Box W300D400H500mm

GBT2A Door 300*350,Box W700D450H550mm

GBT3A Door 300*400,Box W800D550H600mm

GBT4A Door 300*300,Box W900D500H500mm

GBT5A Door 400*400,Box W900D600H700mm

GBT6A Door 400*400, Box W1000D750H700

GBT8A Door 400*400, Box W1200*D800*H700

Portable Acrylic Glove Box Features & Optional

Cabinet	Acrylic material, thickness 6MM transparent
Windows	The experimental process can be clearly observed from any angle
Ball valve	The inlet and outlet ball valves are made of 304 stainless steel. There are water nozzles inside and outside the valves to allow water and air to enter. Some instruments (such as spin coaters) can be placed in the box to draw a vacuum.
Power supply	The box is equipped with multiple power sockets to meet the needs of customers' internal instrument use
Gloves	The operator's hand box uses industrial-grade corrosion-resistant latex gloves, and the glove opening is fixed with a sealing ring

Fully automatic humidity system	Fully automatic control of humidity/moisture content in the box, getting out of the blind spot of humidity
Fully automatic pressure system	The pressure inside the box is kept constant, which is especially suitable for the case of harmful powder leakage.
Oven	If vacuum baking is required, you can select the transition chamber heating mode
Gas replacement system	After vacuuming and filling with inert gas, the water & oxygen value is generally around 200PPM
Purification system	Can achieve water & oxygen value <1PPM
Dust removal system	The internal purification level reaches 100/1000 level, and the dust removal system can be selected
